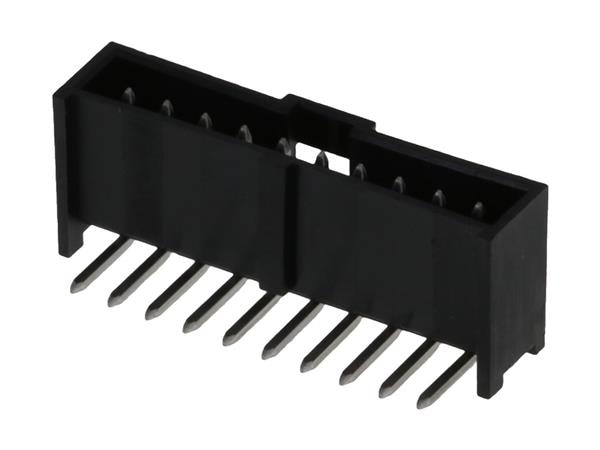

Molex 90136-2110 Shrouded 2.54MM CGRIDIII HDR 10P R/A SR SHRD TIN

Pitch: 2.54 mm (0.1 in)

Unit Weight: 1.641 g

Housing Color: Black

Latching Type: Latched

Contact Gender: Pin (Male)

Current Rating: 3 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 1 Row

Voltage Rating: 350 VAC/DC

Contact Plating: Gold

Contact Material: Tin

Housing Material: Polyester

Termination Style: Solder Pin

Mating Post Length: 6.75 mm (0.266 in)

Flammability Rating: UL 94 V-0

Number of Positions: 10 Position

Termination Post Length: 2.9 mm (0.114 in)

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
