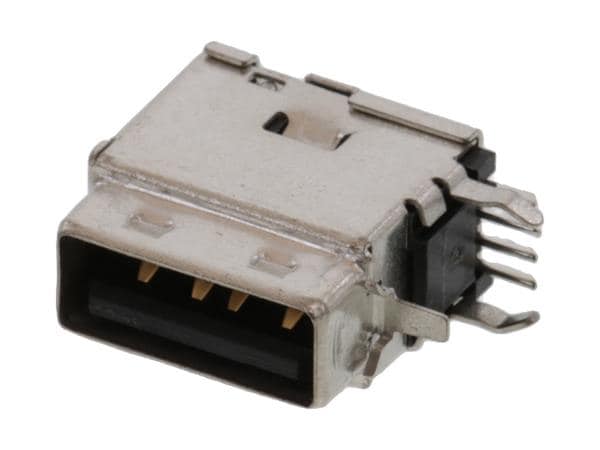

Molex 89485-8003 USB Type A Connectors USB Type A Recept Single Upright R/A
ManufacturerMolex(View more products from this manufacturer)
Model89485-8003
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Gender: Jack (Female)
Features: Upright Position
Unit Weight: 2.261 g
Current Rating: 1 A
Mounting Angle: Right Angle
Mounting Style: Mounting Peg
Voltage Rating: 750 VAC
Contact Plating: Gold
Insulator Color: Black
Number of Ports: 1 Port
Contact Material: Tin
Termination Style: Solder Pin
Number of Contacts: 4 Contact
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 50 C
Minimum Operating Temperature: 0 C
