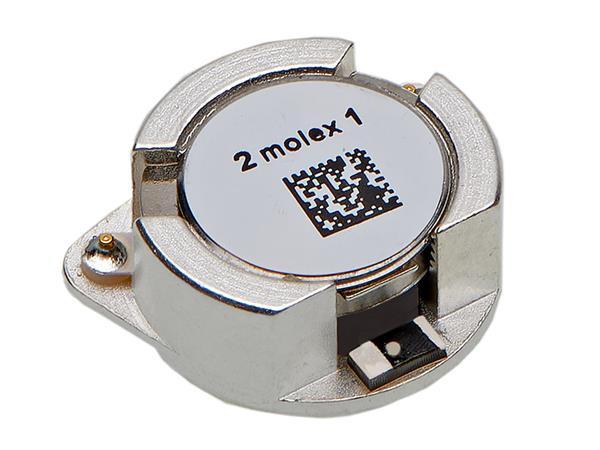

Molex 73591-2082 Single Junction SMSJ Isolator 5.65-7.15GHz 11mm
ManufacturerMolex(View more products from this manufacturer)
Model73591-2082
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency: 5.65 GHz to 7.15 GHz
Impedance: 50 Ohms
Dimensions: 11 mm x 7 mm
Isolation dB: 18 dB
Power Rating: 10 W
REACH - SVHC: Details
Body Material: Steel
Insertion Loss: 0.5 dB
Mounting Style: Solder
Contact Plating: Gold
Termination Style: Solder
Operation Direction: Counterclockwise
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
