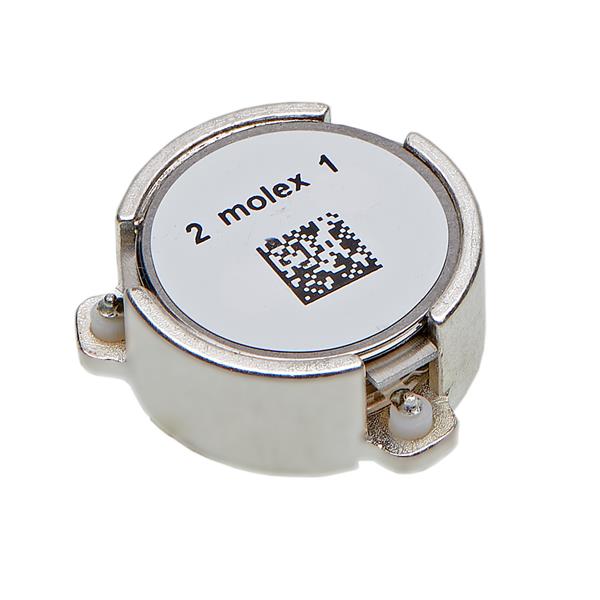

Molex 73591-2060 Single Junction SMSJ Circulator 2.49-2.69GHz 15mm
ManufacturerMolex(View more products from this manufacturer)
Model73591-2060
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency: 2.496 GHz to 2.69 GHz
Impedance: 50 Ohms
Dimensions: 15.5 mm x 7 mm
Isolation dB: 22 dB
Power Rating: 100 W
Body Material: Carbon Steel
Insertion Loss: 0.25 dB
Mounting Style: Solder Tab
Contact Plating: Silver
Operation Direction: Counterclockwise
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
