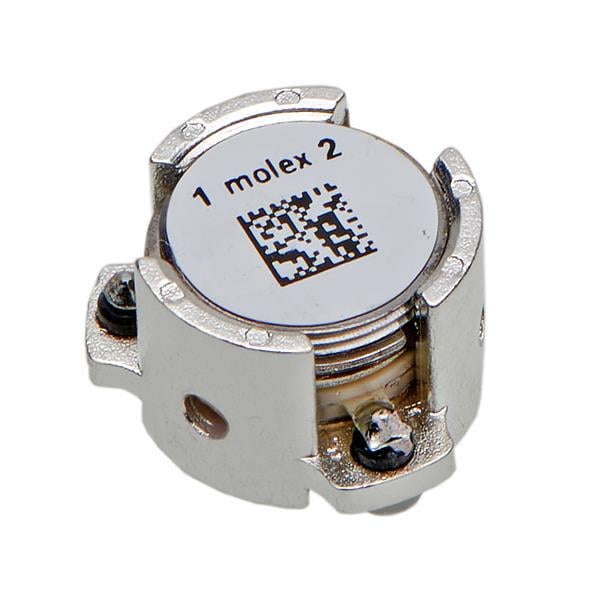

Molex 73591-2052 Single Junction SMSJ Circulator 4.5~5.0GHz 10mm
ManufacturerMolex(View more products from this manufacturer)
Model73591-2052
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency: 4.5 GHz to 5 GHz
Impedance: 50 Ohms
Dimensions: 10 mm x 7 mm
Isolation dB: 21 dB
Power Rating: 50 W
REACH - SVHC: Details
Body Material: Carbon Steel
Insertion Loss: 0.28 dB
Mounting Style: Solder Tab
Contact Plating: Silver
Operation Direction: Clockwise
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
