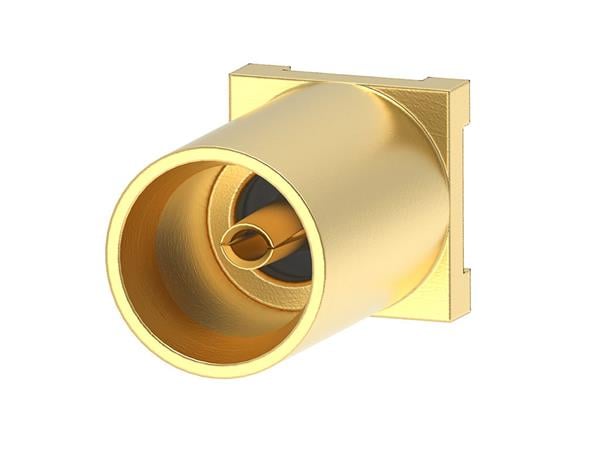

Molex 73413-6630 RF Connectors / Coaxial Connectors SSMCX JACK PCB 50 OHM VERTICAL
ManufacturerMolex(View more products from this manufacturer)
Model73413-6630
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: SSMCX
Body Style: Straight
Body Finish: Gold
Orientation: Straight
Body Material: Brass
Mating Cycles: 50 Cycle
Insertion Loss: 0.1 dB
Mounting Style: PCB Mount
Voltage Rating: 170 V
Contact Plating: Gold
Contact Material: Copper
Maximum Frequency: 6 GHz
Termination Style: Solder
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 155 C
Minimum Operating Temperature: - 55 C
