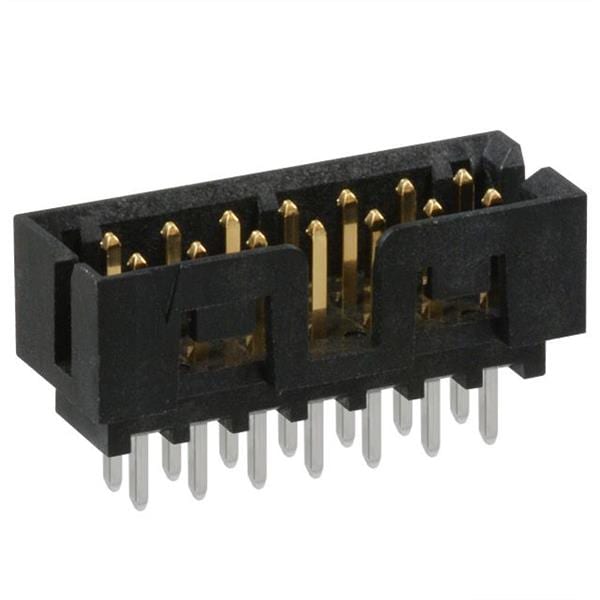

Molex 70247-2451 Shrouded CGrid Hdr Shrd R.A / /OStdf .38AuLF 24Ckt

Pitch: 2.54 mm (0.1 in)

Application: Wire-to-Board, Signal

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 3.386 g

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 2.5 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 250 VDC

Contact Plating: Gold

Contact Material: Tin

Housing Material: Polyester

Termination Style: Solder Pin

Mating Post Length: 6.1 mm (0.24 in)

Flammability Rating: UL 94 V-0

Number of Positions: 24 Position

Termination Post Length: 3.05 mm (0.12 in)

Maximum Operating Temperature: + 120 C

Minimum Operating Temperature: - 55 C
