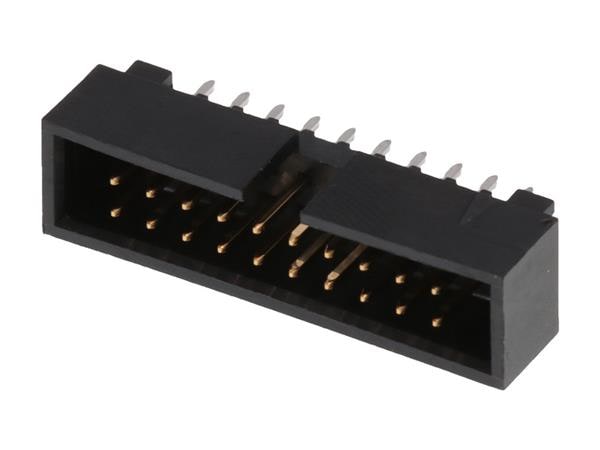

Molex 70246-2004 Shrouded 2.54mm CGrid Hdr Shr d /Slt .13AuLF 20Ck

Pitch: 2.54 mm (0.1 in)

Application: Wire-to-Board, Signal

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 2.485 g

Contact Gender: Pin (Male)

Current Rating: 2.5 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 250 VDC

Contact Plating: Gold

Contact Material: Tin

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: Solder Pin

Mating Post Length: 6.1 mm (0.24 in)

Flammability Rating: UL 94 V-0

Number of Positions: 20 Position

Termination Post Length: 3.43 mm (0.135 in)

Maximum Operating Temperature: + 120 C

Minimum Operating Temperature: - 55 C
