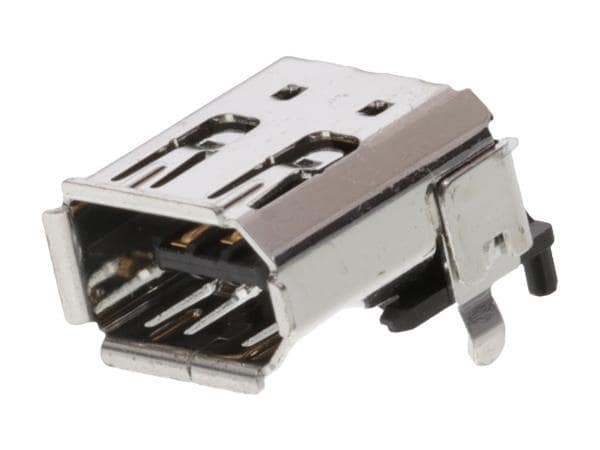

Molex 53462-0629 IEEE 1394-1995 Shielded I/O PCB Socket IEEE1394-1995 Rt-Angle Shielded

Color: Black

Pitch: 2 mm

Gender: Female

Features: Full Metal Shielding for ESD Protection

Standard: SMD/SMT

Unit Weight: 2 g

Connector Type: IEEE 1394 Receptacle, Right Angle

Current Rating: 500 mA, 1.5 A

Mounting Angle: Right Angle

Mounting Style: PCB Mount

Voltage Rating: 40 V

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Phosphor Bronze

Termination Style: SMD/SMT

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position

Insulation Resistance: 100 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
