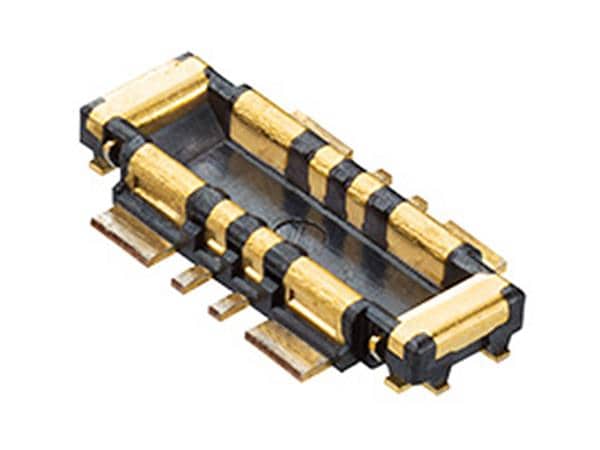

Molex 505476-0810 Plugs SS Hybrid Pwr Plug 4 Pwr / 4S Contacts
ManufacturerMolex(View more products from this manufacturer)
Model505476-0810
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 0.4 mm (0.016 in)
Application: Power, Signal, Board to Board
Unit Weight: 5.620 mg
Stack Height: 0.6 mm
Current Rating: 500 mA, 5 A
Mounting Angle: Vertical
Mounting Style: SMD/SMT
Number of Rows: 2 Row
Voltage Rating: 50 V
Contact Plating: Gold
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
