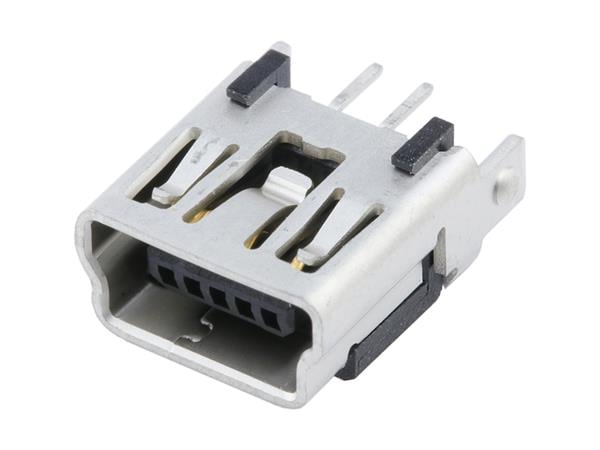

Molex 500075-0517 Mini USB Type B Connectors USB Mini-B Recept Vert. w/Solder Tails
ManufacturerMolex(View more products from this manufacturer)
Model500075-0517
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Gender: Receptacle (Female)
Features: Compatible with the On-The-Go supplement (Rev. 1.0) to the USB 2.0 specification
Unit Weight: 521.440 mg
Current Rating: 1 A
Mounting Angle: Vertical
Mounting Style: Mounting Peg
Voltage Rating: 30 V
Contact Plating: Gold
Number of Ports: 1 Port
Contact Material: Tin
Termination Style: Solder Pin
Number of Contacts: 5 Contact
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
