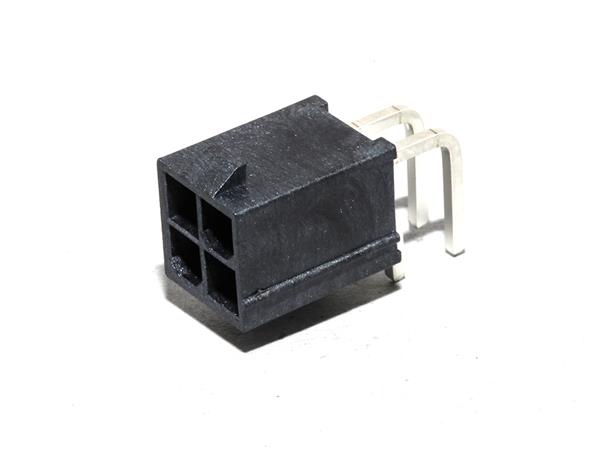

Molex 46991-1004 Power Mini-Fit Jr LCP RA Hdr NoPeg 4ckt Tin

Pitch: 4.2 mm (0.165 in)

Row Spacing: 4.2 mm (0.165 in)

Unit Weight: 2 g

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 13 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 600 VAC/DC

Contact Plating: Nickel

Contact Material: Brass

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 4 Position

Termination Post Length: 3.3 mm (0.13 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
