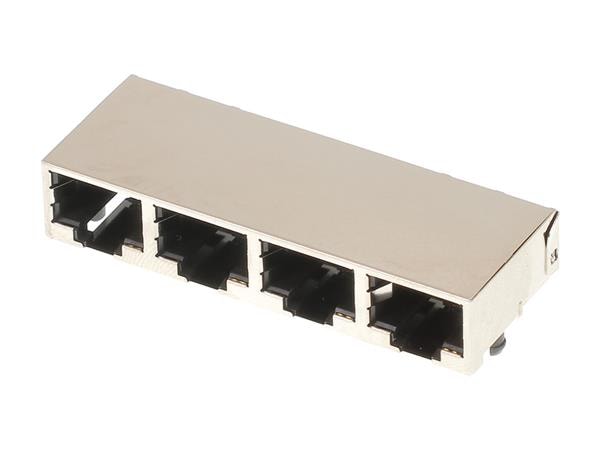

Molex 44560-0004 Ganged RA 8/8/4 CAT 5E RJ45 low profile

Color: Black

Pitch: 1.02 mm

Gender: Jack (Female)

Shielding: Shielded

USOC Codes: RJ45

Application: 10/100/1000 Base-T

Unit Weight: 12.715 g

Configuration: 1x4

Tab Direction: Tab Down

Current Rating: 1.5 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 150 V

Contact Plating: Gold

Number of Ports: 4 Port

Contact Material: Tin

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 5, Cat 5e

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
