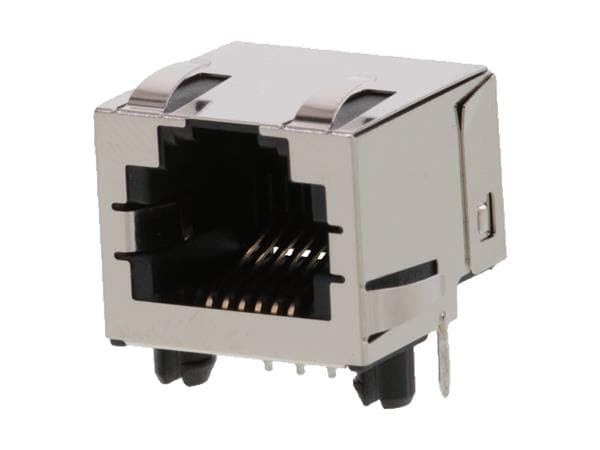

Molex 43860-0014 Modular RA 6/6 INVERTED RJ11 all panel tabs

Color: Black

Pitch: 1.02 mm

Gender: Jack (Female)

Shielding: Shielded, EMI Fingers

USOC Codes: RJ11

Application: 10 Base-T

Unit Weight: 3.753 g

Configuration: 1x1

Tab Direction: Tab Up

Current Rating: 1.5 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 150 VAC

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Tin

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position

Performance Category: Cat 3

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 6P6C
