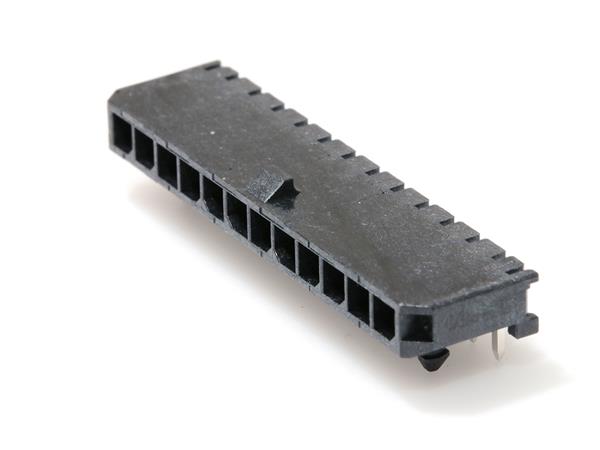

Molex 43650-1201 Shrouded 3MM MICRO-FIT RA 12 CKT Gold Sele.

Pitch: 3 mm (0.118 in)

Application: Wire-to-Board, Power

Unit Weight: 2.105 g

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 8.5 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 1 Row

Voltage Rating: 600 V

Contact Plating: Gold

Contact Material: Tin

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position

Termination Post Length: 3.18 mm (0.125 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
