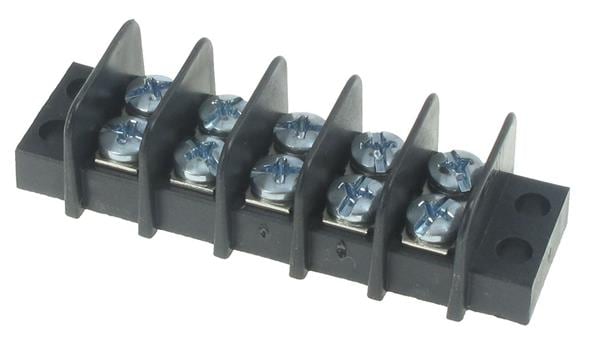

Molex 38760-0105 Low Profile Barrier Terminal Strip .375 PCB 5P screw terminal dual
ManufacturerMolex(View more products from this manufacturer)
Model38760-0105
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Pitch: 9.53 mm
Width: 22.4 mm
Height: 16 mm
Length: 64.3 mm
Unit Weight: 27.216 g
Current Rating: 15 A
Mounting Style: Panel Mount
Number of Rows: 2 Row
Voltage Rating: 300 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 22 AWG
Contact Material: Brass
Housing Material: Thermoplastic (TP)
Termination Style: Screw
Flammability Rating: UL 94 V-0
Number of Positions: 5 Position
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 40 C
