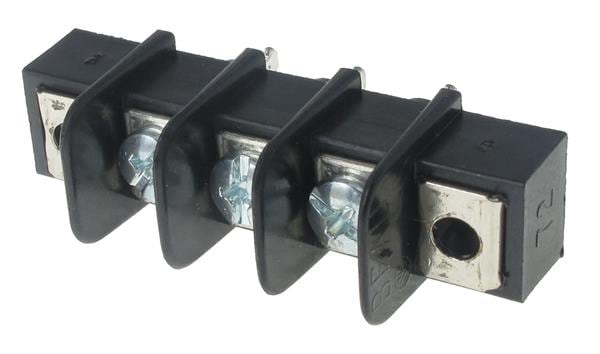

Molex 38720-3203 Beau PCB Terminal Barrier Strip .375 PCB 3P SINGLE Solder turret style
ManufacturerMolex(View more products from this manufacturer)
Model38720-3203
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Pitch: 9.35 mm
Width: 15.7 mm
Height: 16.8 mm
Length: 49.7 mm
Unit Weight: 14.742 g
Current Rating: 15 A
Mounting Angle: Vertical
Mounting Style: Chassis Mount
Number of Rows: 1 Row
Voltage Rating: 300 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Contact Material: Brass
Housing Material: Thermoplastic (TP)
Termination Style: Turret
Flammability Rating: UL 94 V-0
Number of Positions: 3 Position
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
