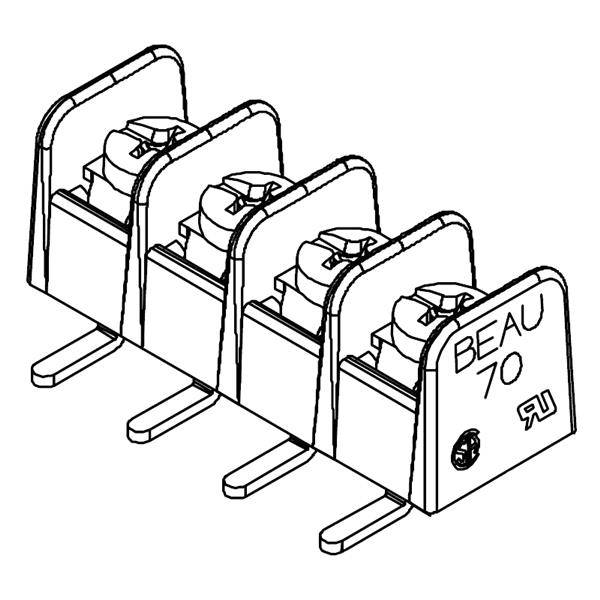

Molex 38701-5316 Beau Barrier Terminal Strip SR BTS PC RA 16 ASY R BTS PC RA 16 ASY C
ManufacturerMolex(View more products from this manufacturer)
Model38701-5316
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Pitch: 8.26 mm
Width: 12.7 mm
Height: 12.7 mm
Length: 134 mm
Current Rating: 15 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Number of Rows: 1 Row
Voltage Rating: 300 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Contact Material: Brass
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 16 Position
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 40 C
