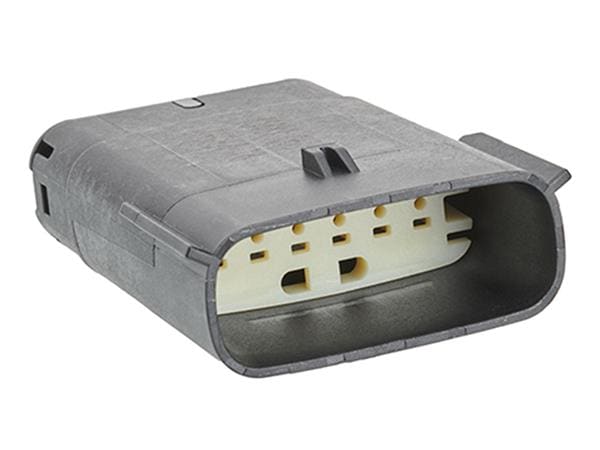

Molex 33481-0601 Connectors MX150 ASSY 1.5 BLD 1X6 BLK A/6

Color: Black

Pitch: 3.5 mm (0.138 in)

Gender: Plug (Male)

Material: Nylon

Application: Power

Unit Weight: 11.838 g

Contact Type: Plug

Contact Gender: Without Pin Contacts

Current Rating: 22 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Wire Gauge Max: 14 AWG

Wire Gauge Min: 22 AWG

Housing Material: Polystyrene (PS)

Wire Gauge Range: 22 AWG to 14 AWG

Termination Style: Crimp

Number of Positions: 6 Position

Description/Function: MX150 Mat-Sealed Male Connector Assembly, Keying Option A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
