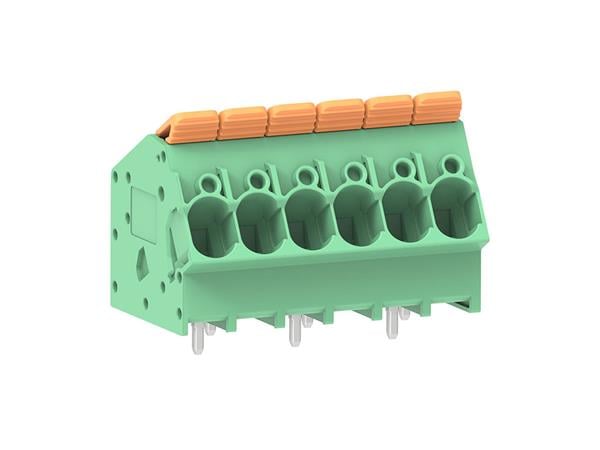

Molex 221393-0006 Fixed Terminal Blocks 7.50mm Pitch Lever Activated Fixed Mount PCB Term Block 35 Entry LF Term 6 Ckt
ManufacturerMolex(View more products from this manufacturer)
Model221393-0006
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Green
Pitch: 7.5 mm
Current Rating: 38 A
Mounting Angle: Vertical
Mounting Style: PCB Mount
Voltage Rating: 600 V
Wire Gauge Max: 8 AWG
Wire Gauge Min: 24 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Polyamide (PA)
Connection Method: PCB Mount
Termination Style: Through Hole
Flammability Rating: UL 94 V-0
Number of Positions: 6 Position
