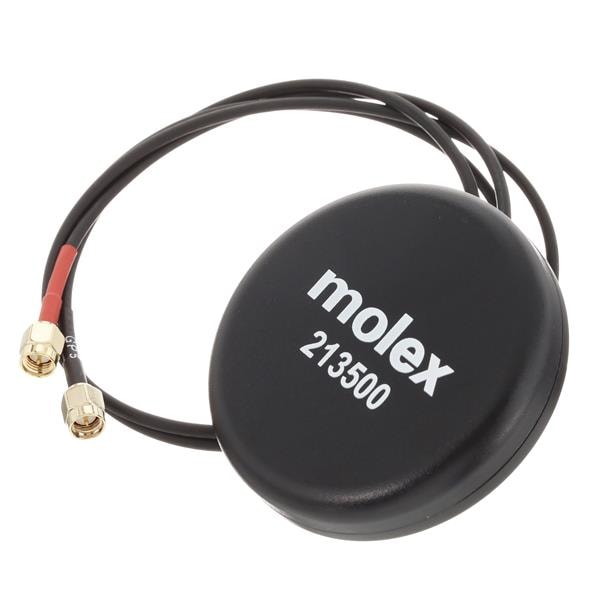

Molex 213500-0500 MIMO LTE/GNSS 75mm 2in1 Antenna Screw Mnt

Gain: 0.77 dBi, 0.77 dBi, 3.73 dBi

Style: Puck

Length: 75 mm

Diameter: 14.9 mm

Impedance: 50 Ohms

Cable Type: 500 mm Coax x 2

Cable Length: 500 mm

Polarization: Linear

Power Rating: 2 W

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Number of Bands: 3 Band

Center Frequency: 824 MHz, 1.71 GHz, 1.575 GHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 4G, Cellular (NBIoT, LTE)
