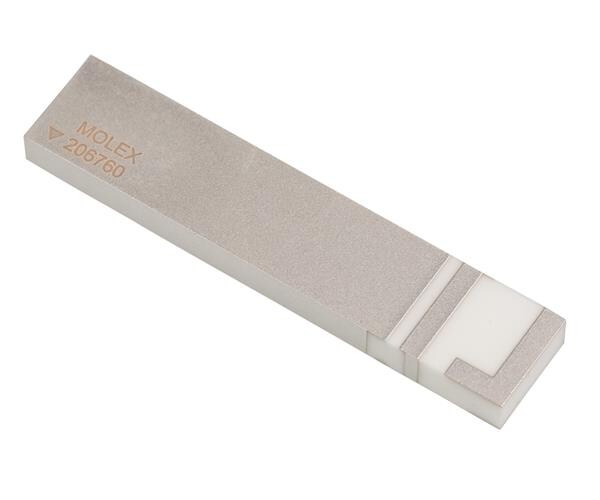

Molex 206760-0001 Passive Antenna 698MHz-2.7GHz Cellul Ceramic Low Prof SMT

Gain: 1.3 dBi, 4.4 dBi

Style: Ceramic

Width: 8 mm

Height: 3 mm

Length: 38 mm

Impedance: 50 Ohms

Unit Weight: 3.436 g

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 2 Band

Center Frequency: 748 MHz, 824 MHz, 815 MHz, 829 MHz, 898 MHz, 915 MHz, 928 MHz, 1850 MHz, 2170 MHz, 2450 MHz, 2690 MHz

Mechanical Style: Chip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT, ISM

Protocol - WiFi - 802.11: 802.11, LoRaWAN, SigFox, WiFi, WLAN

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
