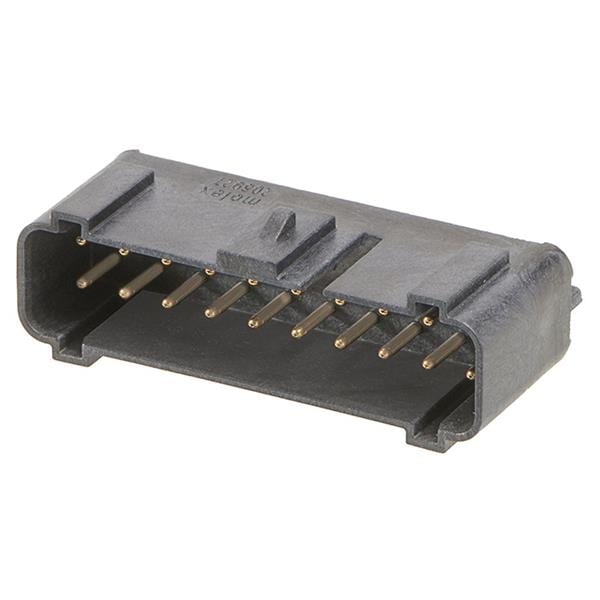

Molex 205927-1070 Headers MultiCat MP VRT HDR 20CKT KY A PCL 4.1mm

Pitch: 3.6 mm

Application: Power, Wire-to-Board

Row Spacing: 3.6 mm

Unit Weight: 4.195 g

For Use With: MultiCat Receptacle Housing

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 4.5 A

Mounting Angle: Vertical

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Brass

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 20 Position

Insert / Contact Gender: Pin (Male)

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
