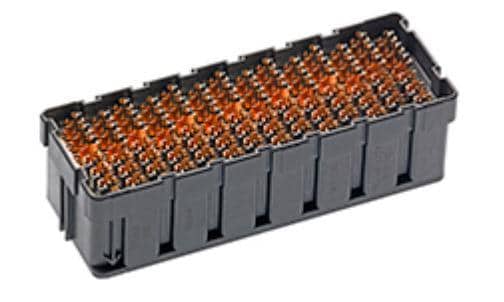

Molex 203341-0002 Plugs 3.5mm NeoPress Plug 4x12 85Ohm 144Ckt
ManufacturerMolex(View more products from this manufacturer)
Model203341-0002
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 3.5 mm (0.138 in)
Application: Board-to-Board, Signal
Unit Weight: 10.720 g
Current Rating: 1 A
Mounting Angle: Vertical
Mounting Style: PCB
Number of Rows: 4 Row
Voltage Rating: 30 VAC
Contact Plating: Gold
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 144 Position
Termination Post Length: 1.38 mm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 55 C
