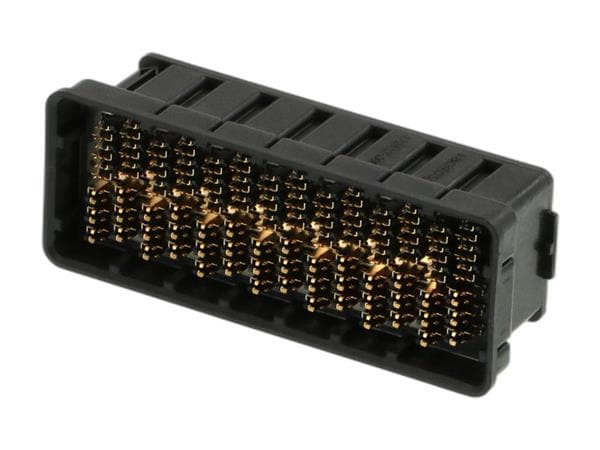

Molex 172832-0001 Receptacles NeoStack 6x14 Rcpt 13.5mm
ManufacturerMolex(View more products from this manufacturer)
Model172832-0001
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 3.5 mm (0.138 in)
Application: Board to Board, Signal
Unit Weight: 17.462 g
Stack Height: 13.5 mm
Current Rating: 1 A
Mounting Angle: Vertical
Mounting Style: Straight Pin
Number of Rows: 6 Row
Voltage Rating: 30 VAC
Contact Plating: Gold
Contact Material: Copper
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 252 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 55 C
