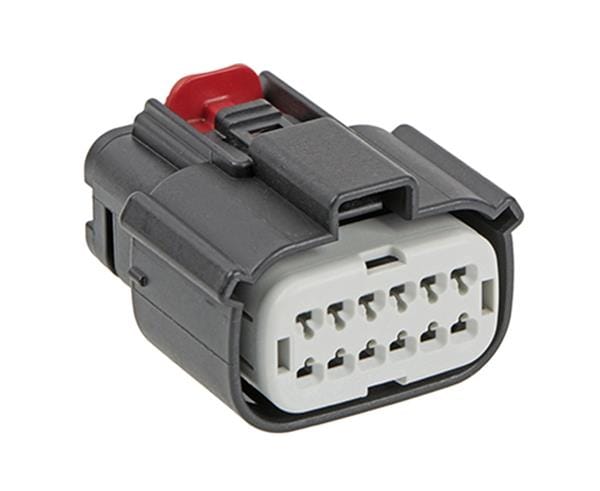

Molex 160074-6006 Receptacle Housing MX150UL ASSY RCPT 2X6 CPA BLK A/12

Color: Black

Pitch: 3.5 mm (0.138 in)

Gender: Receptacle (Female)

Features: With Connector Position Assurance

Material: Nylon

Unit Weight: 18.700 g

Contact Gender: Without Socket Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Housing Material: Nylon

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position

Description/Function: MX150 Mat-Sealed Female Connector Assembly, Keying Option A

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
