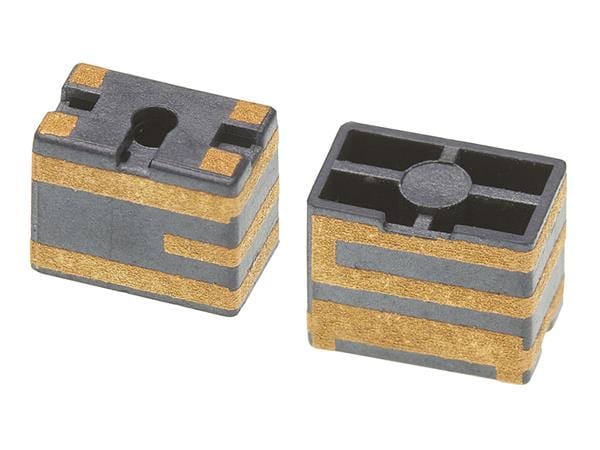

Molex 146175-0001 Passive Antenna 2.4/5GHz SMTOnGround MID Chip Antenna

Gain: 3 dB, 4.2 dB

Style: Chip

Width: 3.07 mm

Length: 5 mm

Impedance: 50 Ohms

Technology: WiFi

Unit Weight: 280 mg

For Use With: WiFi

Polarization: Linear

Power Rating: 2 W

Mounting Style: PCB Mount

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: Chip

Maximum Frequency: 5.85 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT, ISM, U-NII

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
