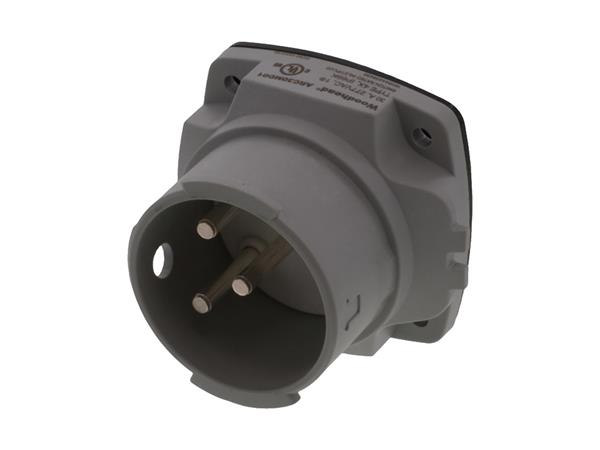

Molex 1122191008 Plugs ArcArrest Plug 30A 277V AC 3 Groms

IP Rating: IP69K

Application: Food Processing - Conveyors, Packaging Machines, Process Equipment, Pumps, General Industrial - Conveyors, Power Distribution, Process Equipment, Server Rack Power Supply, Welding Receptacles

For Use With: Woodhead ArcArrest Receptacle, Woodhead ArcArrest Receptacle with Handle, Woodhead ArcArrest Receptacle with Handle and Drawplates

Current Rating: 30 A

Mounting Angle: Straight

Mounting Style: Flange Mount

Voltage Rating: 277 VAC

Wire Gauge Max: 8 AWG

Wire Gauge Min: 12 AWG

Contact Plating: Silver

Contact Material: Copper Alloy

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: Screw

Flammability Rating: UL 94 V-0

Number of Positions: 3 Position

Insert / Contact Gender: Male

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 25 C
