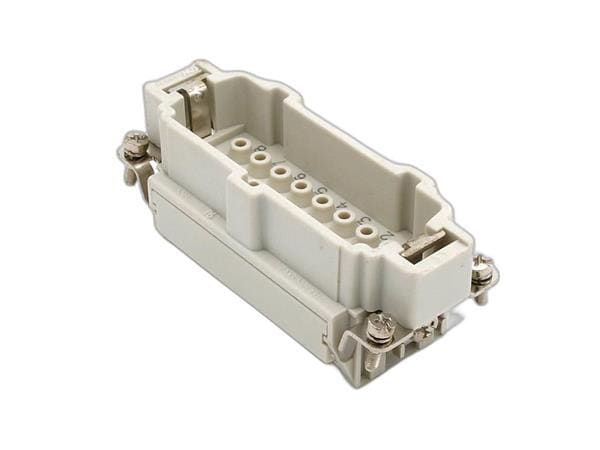

Molex / GWconnect 93601-0281 Inserts S-EC INSERT 16P MALE CRP TERM 7316.6163.0

Unit Weight: 57 g

For Use With: Size 16B Hoods

Housing Color: Gray

Current Rating: 16 A

Housing Gender: Male

Mounting Angle: Straight

Mounting Style: Panel

Number of Rows: 2 Row

Voltage Rating: 500 V

Housing Material: Polycarbonate (PC)

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Housing / Hood Size: 16B

Number of Positions: 16 Position

Insert / Contact Gender: Male

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
