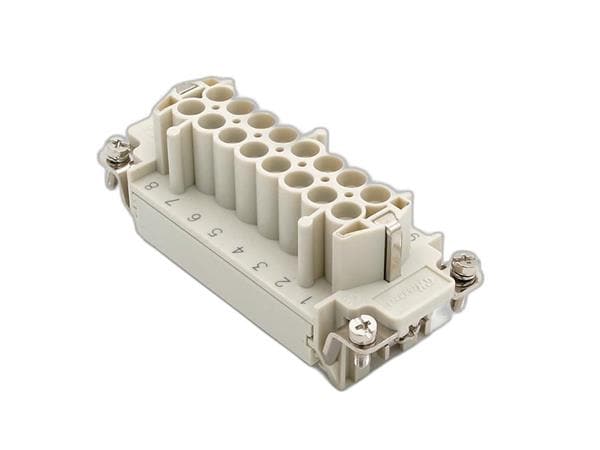

Molex / GWconnect 93601-0271 Inserts S-EC Insert 16P FEM Term 7316.6063.0

Unit Weight: 61 g

For Use With: Size 16A Hoods

Housing Color: Gray

Current Rating: 16 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Panel

Number of Rows: 2 Row

Voltage Rating: 500 V

Housing Material: Polycarbonate (PC)

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Housing / Hood Size: 16B

Number of Positions: 16 Position

Insert / Contact Gender: Female

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
