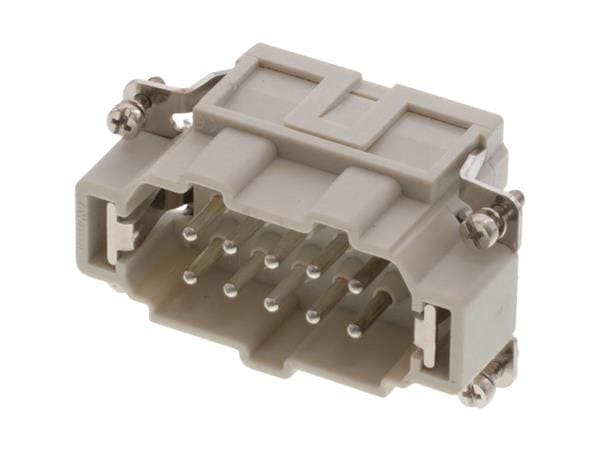

Molex / GWconnect 93601-0229 Inserts 10P+ PE M INSERT 16A SPG TERM 7310.5952.

Unit Weight: 62 g

REACH - SVHC: Details

Current Rating: 16 A

Housing Gender: Male

Number of Rows: 2 Row

Voltage Rating: 500 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 26 AWG

Contact Plating: Silver

Contact Material: Copper Alloy

Housing Material: Polycarbonate (PC)

Wire Gauge Range: 26 AWG to 14 AWG

Termination Style: Spring Terminal

Flammability Rating: UL 94 V-0

Housing / Hood Size: 10B

Number of Positions: 10 Position

Insert / Contact Gender: Male

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
