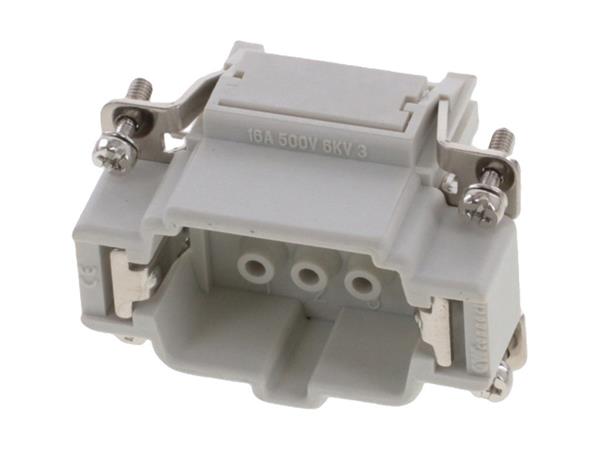

Molex / GWconnect 93601-0222 Inserts S-EC Ins 6P M Crimp Term 7306.6161.0

Unit Weight: 43.500 g

For Use With: Size 6B Hoods

Housing Color: Gray

Current Rating: 16 A

Housing Gender: Male

Mounting Angle: Straight

Mounting Style: Panel

Number of Rows: 2 Row

Voltage Rating: 500 V

Housing Material: Polycarbonate (PC)

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Housing / Hood Size: 6B

Number of Positions: 6 Position

Insert / Contact Gender: Male

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
