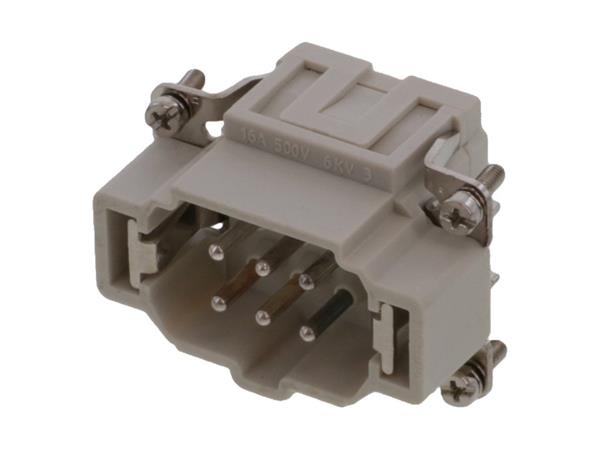

Molex / GWconnect 93601-0205 Inserts 6P+ PE M INSERT 16A SPR TERM 7306.5951.0

Unit Weight: 52.800 g

Current Rating: 16 A

Housing Gender: Male

Number of Rows: 2 Row

Voltage Rating: 500 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 26 AWG

Contact Plating: Silver

Contact Material: Copper Alloy

Housing Material: Polycarbonate (PC)

Wire Gauge Range: 26 AWG to 14 AWG

Termination Style: Spring Terminal

Flammability Rating: UL 94 V-0

Housing / Hood Size: 6B

Number of Positions: 6 Position

Insert / Contact Gender: Male

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
