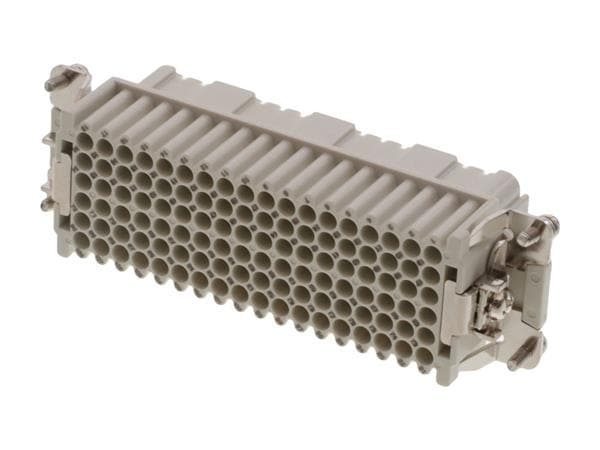

Molex / GWconnect 93601-0082 Inserts 108P+ PE F INSERT CRP TERM 7108.4058.0

Unit Weight: 81 g

For Use With: Size 24B Housings

Current Rating: 10 A

Housing Gender: Female

Mounting Angle: Straight

Number of Rows: 6 Row

Voltage Rating: 250 V

Housing Material: Polycarbonate (PC)

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Housing / Hood Size: 24B

Number of Positions: 108 Position

Insert / Contact Gender: Female

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
