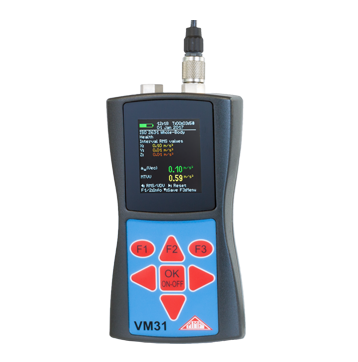

MMF VM31-M Human Vibration Analyzer (800 m/s², 100-10000mm/s, 250~15000µm)

Inputs: 4 low-power IEPE inputs; 1 mA / 17 V; TEDS support, IEEE1451.4, Template 25

Sensors: Low-power IEPE, sensitivity 0.8 - 120 mV/ms^-2

Measuring ranges (with sensor 1 mV/ms^-2): Acceleration: 800 m/s²; velocity: 100 - 10000 mm/s; displacement: 250 - 15000 µm

Linearity range: > 75 dB for ± 6 % error

Noise: < 0,003 m/s²

Frequency analysis (FFT): 125 lines for X/Y/Z, peak spectrum of acceleration, 3 - 240 / 6 - 480 / 12 - 960 / 24 - 1920 Hz

Data memory: Flash, 10 000 measurements, 1000 FFTs, each with date, time and comment

Display: OLED, 128 x 160 pixels, colored

USB interface: USB 2.0, full-speed, CDC mode (virtual COM port), via cable VM2x-USB

Batteries: 3 accumulators HR03 or Alkaline cells LR03 (size AAA), 10 - 14 hours operation

Temperature range: -4 .. 140°F (-20 .. 60°C), < 95 % relative humidity, no condensation

Dimensions without connectors; weight: 125x65x27mm; 140g (5x2.5x1.1in; 5oz)

Standard accessories: VM31, triaxial accelerometer KS903B100, sensor cable 3 m, magnetic base 308, sensor probe 001, USB cable, batteries, instruction manual

Optional accessories:

Triaxial seat accelerometer: ordering no. KS963B100-S

Triaxial accelerometer (hand-arm): ordering no. KS903B10

Triaxial accelerometer (machine vibration): ordering no. KS903B100

Uniaxial accelerometer for channel A: ordering no. KS78B100

Triaxial sensor cable (3 m): ordering no. 091-CMR-B711-3

Uniaxial sensor cable (3 m): ordering no. VM31-A

Handle adapter for curved surfaces (M5): ordering no. 141

Hand-held adapter for curved surfaces (M5): ordering no. 143
