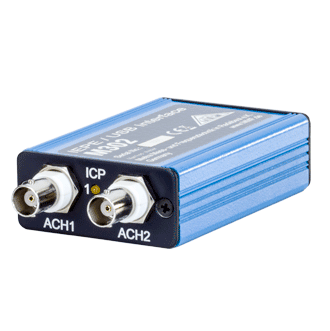

MMF M302 PC Based Vibration Measuring System (0.3~2000Hz, ±100~10000mV)

Sensor inputs: 2 IEPE / AC; RI > 1 MOhm (BNC)

IEPE sensor supply: 3,8 .. 5,6mA / 24V

Outputs: USB 1.1 / USB 2.0

Frequency range: 0.3 .. 2000 Hz (-3 dB)

Accuracy: < 2%

Input ranges: ±10000 mV, ±1000 mV, ±100 mV

TEDS support: -

A/D conversion: 16 Bit, 10 kHz / Kanal

Broadband noise, RMS: 20 µV (0,3 .. 2000 Hz)

Trigger inputs: 1 digital trigger, 0 .. 15 V, threshold: 3 V

Power supply: USB

Operating temperature range: -20 .. 55°C

Dimensions (W x H x D): 55 x 24 x 84 mm³ (without sockets)

Weight: 130 g

Datasheet
