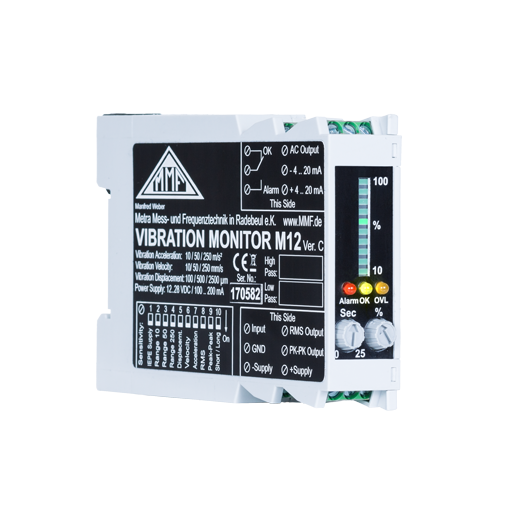

MMF M12 Universal Vibration Monitor (10~250m/s², 10~250mm/s)

Vibration acceleration: 10 / 50 / 250 m/s² ± 5 % (RMS); ±5 % (peak-to-peak)

Vibration velocity (severity): 10 / 50 / 250 mm/s ± 5 % (RMS); ± 8 % (peak-to-peak)

Vibration displacement: 100 / 500 / 2500 µm ± 8 % (RMS); ± 15 % (peak-to-peak)

Frequency ranges and filters:

Vibration acceleration: 1 Hz .. 50 000 Hz (-3 dB)

Vibration velocity (severity): 3 Hz .. 1000 Hz (-3 dB)

Vibration displacement: 3 Hz .. 200 Hz (-3 dB)

Inputs and outputs:

Input: Voltage input, RI > 1 MΩ, AC coupled, IEPE compatible

Sensor supply: 3.2 to 4.8 mA constant current; US > 24 V; activated by DIP switch

Suitable sensors: IEPE compatible(1); sensitivity: 1 .. 10 mV/ms² or 10 .. 100 mV/ (adjustable)

Outputs: Wide-band (AC); filtered (AC); RMS (DC); peak-to-peak (DC); current loop; 1 relay

Power supply: 12 .. 28 VDC; 80 .. 200 mA supply current; insulated

Operating temperature range: -4 .. 131 °F, < 95 % relative humidity, no condensation

Dimensions: 0,9x3x4,4 in (22x76x111 mm)
