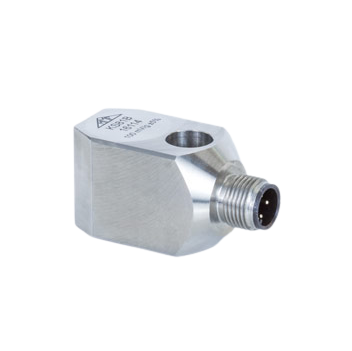

MMF KS81B Industrial Accelerometer (100mV/g, ±60g, 11000Hz)

Output: IEPE

Sensitivity: 100 mV/g

Measuring range: ±60 g

Linear frequency range (±3 dB): 0.13 .. 11000 Hz

Protection grade: IP67

Connector: Binder 713 (M12), radial

Weight: 106 g

Option:

Connection accessories:

• 080G/W: 4-pin plug Binder 713 angled (W) or straight (G) with screw terminals for cables with Ø 4..6 mm; IP67

• 085-B713G-PIG-5/085-B713W-PIG-5: shielded cable; 5 m; PUR jacket Ø 6 mm; with angled (W) or straight (G) plug Binder 713 (IP67) and pigtail

• 085-B713G-BNC-5/085-B713W-BNC-5: shielded cable; 5 m; PUR jacket Ø 6 mm; with angled (W) or straight (G) plug Binder 713 (IP67) and BNC plug

Mounting accessories:

• 043: Mounting stud M8

• 229: Stainless steel adhesive pad M8

• 208: Magnetic base M8

• 230: Triaxial mounting cube M8 (not for KS81)

Datasheet
