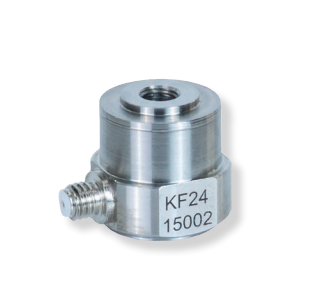

MMF KF24 Piezoelectric Force Transducer (300pC/N, +2000/- 300N, 40 kHz)

Output: Charge

Sensitivity: 300 pC/N

Measuring range: +2000 / - 300 N

Natural frequency: 40 kHz

Mounting: 2 M5 threaded holes

Socket: UNF 10-32

Weight: 20 g

Option:

Connection accessories:

• 009-UNF-UNF-1,5: cable 2 x UNF 10-32; 1.5 m long

• 009-UNF-BNC-1,5: cable UNF 10-32 / BNC; 1.5 m long

• 010-UNF-BNC-5/10: cable UNF 10-32 / BNC; 5 / 10 m long

• 016: Coupler for 2 UNF 10-32 plugs

• 017: Adapter UNF 10-32 / BNC (male)

• 117: Adapter UNF 10-32 / BNC (female)

Mounting accessories:

• 003: Mounting stud M5

• 045: Thread adapter M5 / UNF 10-32

• 046: Thread adapter M5 / 1/4"-28
