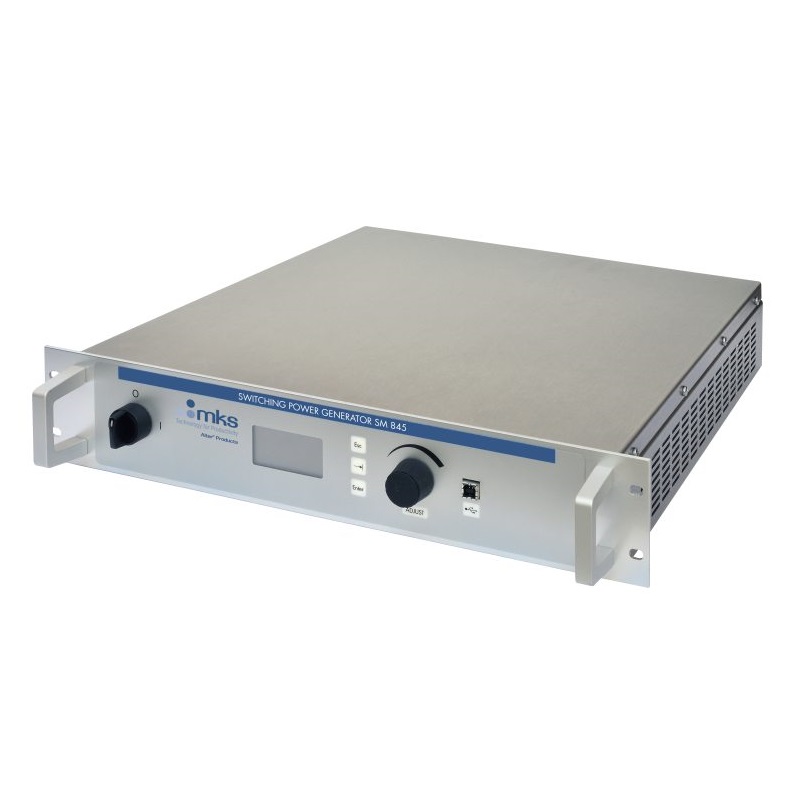

MKS SM-845 Switch Mode Microwave Power Supply (2kW; 2.45GHz)

Power Output: 3000 W max

Input Voltage: 230 VAC +10%/-15%

Line Frequency: 50/60 Hz

Efficiency: 92%

Output Current: 800 mA max

Dimensions: 443 x 88.5 x 420 mm (17.52 x 3.48 x 16.54 inches) (WxHxD)

Front Panel Width: 483 mm (19.02 inches)

Weight: 14kg (31 lbs)

Cooling: Forced air, approx 100 m3/h

Ambient Operating Temperature: 40° C (104° F) maximum

Compliance: CE mark, Directive EMC and LV, through norms EN61010-1, EN61000-6-4, EN61000-6-2

Preferred Microwave Magnetron Head: TM020, TMA20, or TI020

Compatible with: 2kW, 2.45 GHz Magnetron
