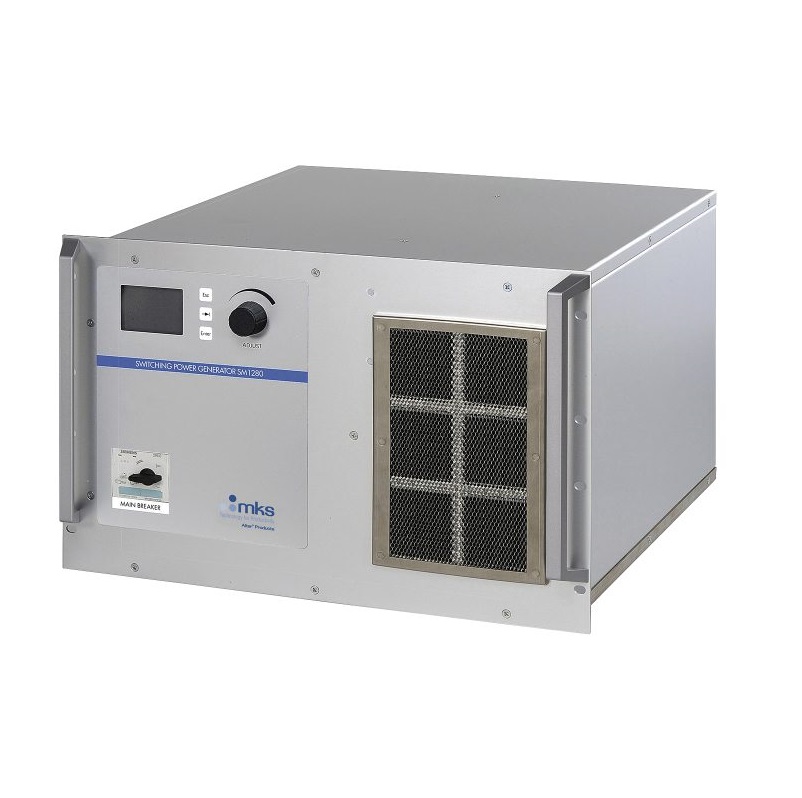

MKS SM-1280 Switch Mode Microwave Power Supply (6kW; 2.45GHz)

Power Output: 8500 W max

Input Voltage: 3 x208V x400V x480V

Line Frequency: 50/60 Hz

Efficiency: 92%

Output Current: 1150 mA max

Dimensions: 444 x 310 x 82 mm (17.5 x 12 x 19 inches) (WxHxD)

Front Panel Width: 480 mm (19.0 inches)

Weight: 35kg (77 lbs)

Cooling: Forced air, approx 200 m3/h

Ambient Operating Temperature: 40°C (104° F) max

Compliance: CE mark, Directive EMC and LV, throught norms EN61010-1, EN61000-6-4, EN61000-6-2

Preferred Microwave Magnetron Head: TM060 or TM066

Compatible with: 6 kW, 2.45 GHz Magnetron
