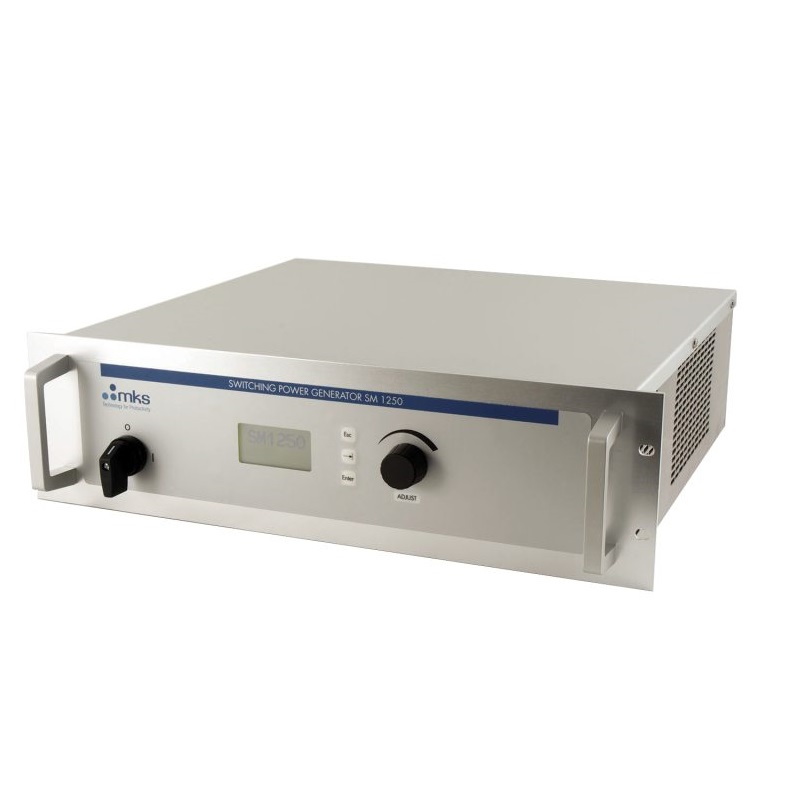

MKS SM-1250 Switch Mode Microwave Power Supply (3W; 2.45GHz)

Power Output: 4500 W max

Input Voltage: 3 x 208V, 3 x 400V

Line Frequency: 50/60 Hz

Efficiency: 92%

Output Current: 1000 mA max

Dimensions: 447.4 x 130.5 x 420 mm (17.61 x 5.14 x 16.54 inches) (WxHxD),

Front Panel Width: 483 mm (19.02 inches)

Weight: 21kg (46 lbs)

Cooling: Forced air, approx 120 m3/h

Ambient Operating Temperature: 40°C (104° F) max

Compliance: CE mark, Directive EMC and LV, through norms EN61010-1, EN61000-6-4, EN61000-6-2

Preferred Microwave Magnetron Head TM031 (Closed head, waveguide size WR340), or TI031 Integral Head with Iso launcher, waveguide size WR340

Compatible withL: 3kW, 2.45 GHz Magnetron
