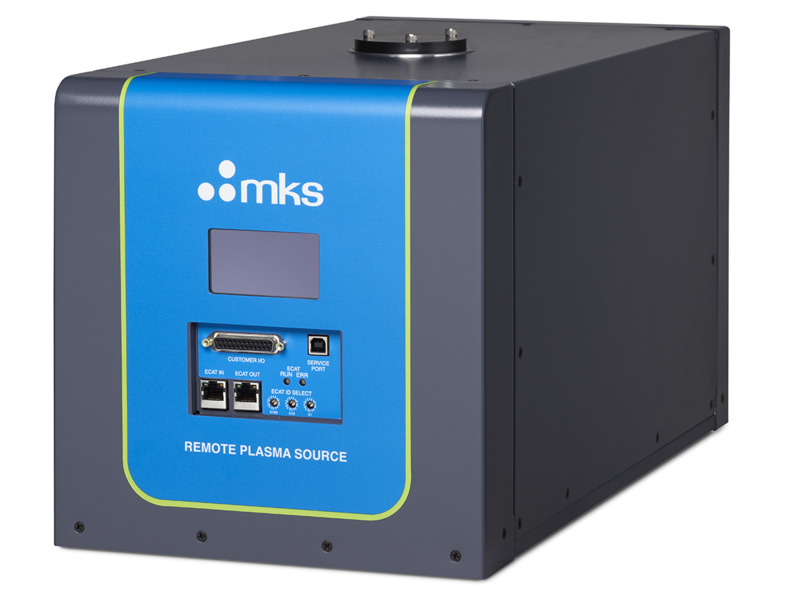

MKS RPS-CM12P1-P12C Remote Plasma Source for ALD, CVD and PVD Chambers (12kW)

Type: RPS-CM12P1 Remote Plasma Source

Power Output: 12 kW, 3 phase 50/60 Hz, 40 Amps RMS max phase

RF Frequency: 400 kHz

Accuracy: ±1% to power set point

Gas Supply During Ignition: Ar

NF3 Process Gas: 1-12 slm, 1-10 T

NF3 Operation Reactant Output: 1-12 slm

THD: >15%

Inlet Gas Connection: KF40

Outlet Gas Connection: KF50 or KF40

Control Interface: Analog: DB25

Digital: EtherCAT

Dimensions: 18.4 x 9.5 x 10.5 in. (46.73 x 24.13 x 26.67cm)

Weight: 73 lbs. (33.11 kg)

Compliance: SEMI F47
