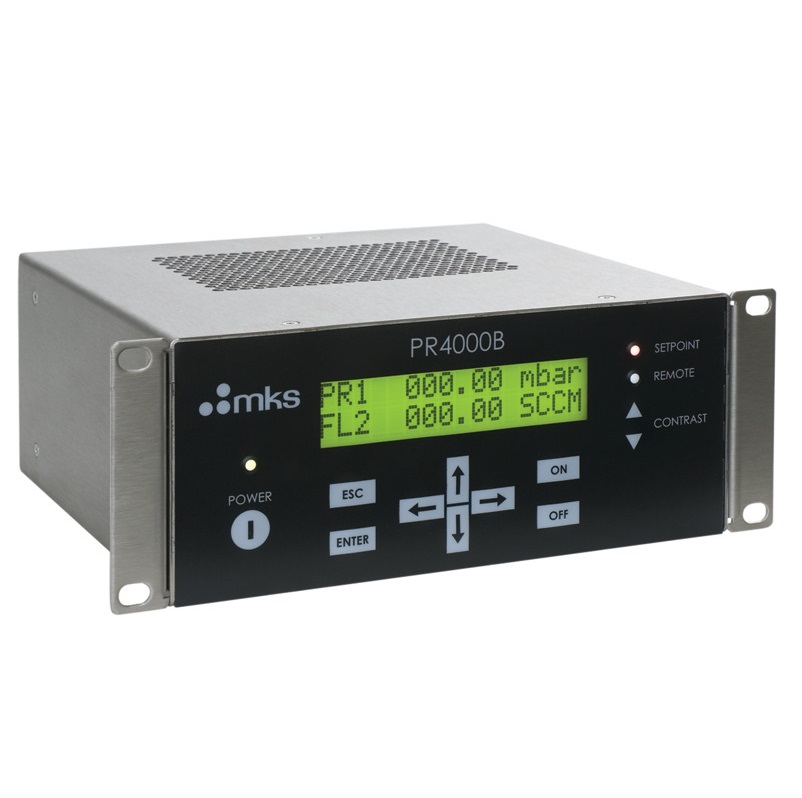

MKS PR4000B Digital Power Supply and Display Module (1-CH; RS232; ±15VDC; 1.5Amp)

Display: 4½ digit backlit LCD display

Channels: 1

Analog Signal Output: 1 analog output per channel with 16 bit resolution

Interface: RS232

Trip Points: 2 fully programmable alarm limit relays

Power Supply Output: ±15VDC, 1.5 Amps

Power Requirements: 85-264 VAC, 47-63 Hz

For Use With: MKS and compatible pressure transducers and mass flow controllers & meters

Operating Temperature: 15-40°C

Memory: Non-volatile memory, (for example, the last setting remains stored)

Weight: 2.4 kg (5.3 lbs)

Compliance: CE

For specific range please check the attachment below!

Literature

Drawing
