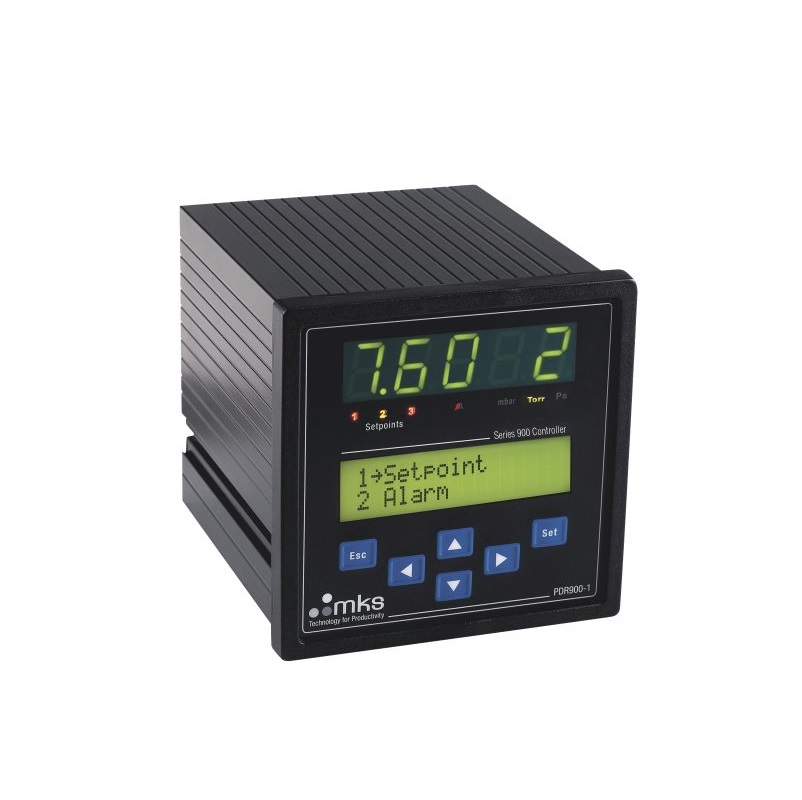

MKS PDR900 Vacuum Gauge Controller (RS232 & RS485; US power cord)

Display: 5 digit, 14.2 mm, green LED

Display Range: 1.0 x 10-8 - 1,500 Torr (transducer dependent)

Units: User Selectable

Compatible with: Series 900 Vacuum Transducers

Region: United States

Electrical Plug: North America & Japan 120 VAC

Power Requirements: 100 - 240 VAC, 50 - 60 Hz, 25 Watts

Interface: Analog Output

Relays: Up to 3

Set Point Contact Rating: 4 Amps @ 250 VAC, resistive

Operating Temperature: 5 - 40°C (41 - 104°F)

Storage Temperature: -10 - 55°C (14 - 131°F)

Case Materials: Painted aluminum

Mounting: 96 x 96 mm, DIN43700

Weight: 1.4 lbs (0.625 kg)

Compliance: CE
