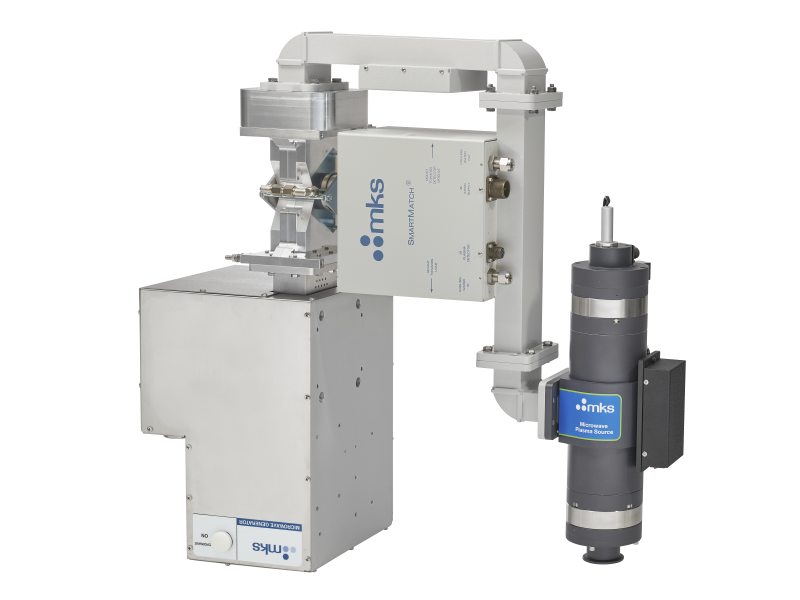

MKS HMPX60S-MKS High Power Microwave Plasma System (6kW; 2440-2470MHz; Sapphire)

Maximum Plasma Power Output: 6.0 kW

Frequency: 2,440-2,470 MHz

Output Accuracy: <1% closed loop control

Ambient Temperature: Up to 40°C max

Microwave Connections: WR284F waveguide with CPR284F flanges

Power Requirements: 200-208 VAC, 3 phase, 50/60 Hz

Autotune: <1.5 seconds with <2% reflected power

Chemistries: O2, N2H2, N2, H2O, NH3, H2

Applicator Material: Sapphire

Operating Pressure: 1 - 10 Torr

Communications: Analog, RS485

Compliance: CE

Configuration: KF40, custom

Cooling: Water: 1 GPM, 20-30°C, 71 PSI max (applicator requires exclusive water cooling supply at 0.50 GPM)

Power Supply Generator Dimensions: (7U rack) 19 H x 12.2 W x 20.03 D in. (482.6 x 309.88 x 508.76 mm)

Power Head Magnetron Head Dimensions: 9.85 H x 9.85 W x 16 D in. (250.19 x 250.19 x 406.4 mm)
