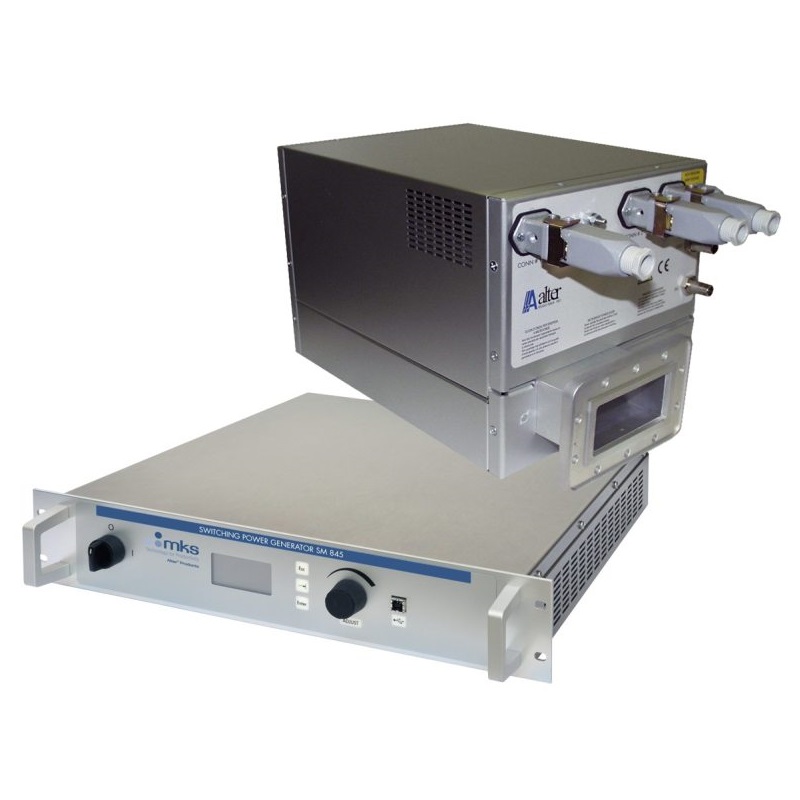

MKS GS030 Industrial Microwave Generators (2450MHz; 3kW)

Maximum Power Output: 3 kW

Frequency: 2440 - 2470 MHz

Power Regulation: 10 - 100%

Ripple: ±3% of output power, max.

Ambient Temperature: Up to 40°C maximum

Microwave Connections: WR340 waveguide with PDR26 flange

Remote Control: PLC, RS232, ANYBUS (optional)

Power Supply: SM 1250

Power Supply Dimensions: 447 x 130 x 420 mm (HxWxD)

Input Power: 3 x 208 V, 50/60 Hz, 3 x 400 V, 50/60 Hz

Waveguide: WR340

Power Head Cooling: 2 I/min, max 5 bar (inlet temp: 20 - 30°C)

Power Supply Cooling: Forced air, approx 120 m3/h

Power Head Dimensions: 280 x 162 x 229 mm (height x width x depth)

Compliance: CE, EN61010-1, EN61000-6-4, EN61000-6-2
