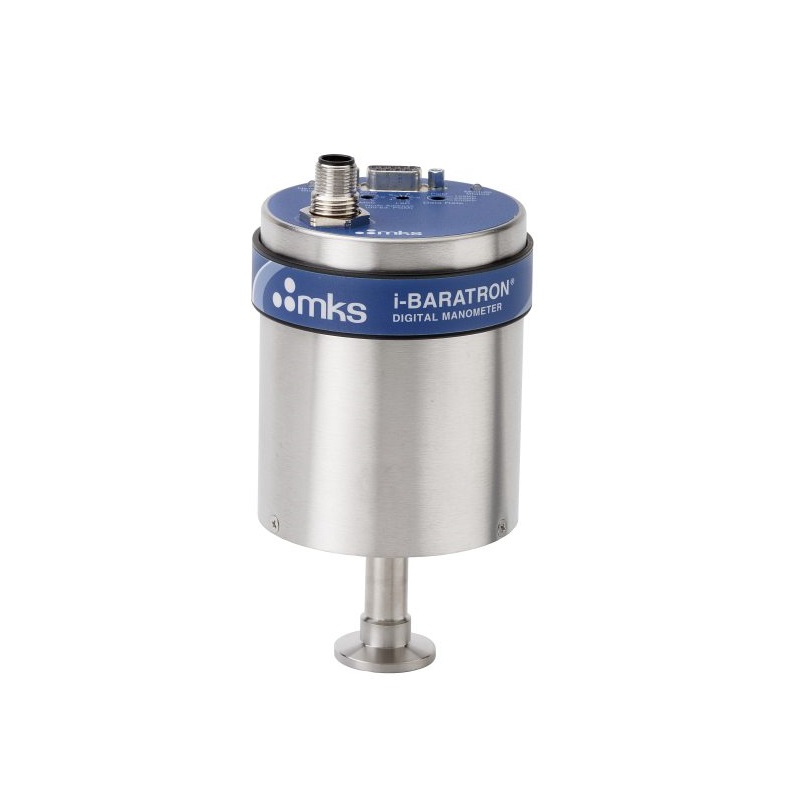

MKS DA01B Absolute Baratron® Capacitance Manometer (0.1-1.000 Torr; DeviceNet)

Measurement Type: Absolute

Sensor Temperature: Unheated or controlled to 45°C, 80°C or 100°C

Full Scale Pressure Ranges: 0.1, 0.25,1, 2, 10, 20, 100, 200, 500, and 1000 Torr

Accuracy: Unheated: 0.25% Reading

45°C Models: 0.12% Reading for 1-1000 Torr, 0.15% Reading for<1 Torr

80°C and 100°C Models: 0.25% Reading for 1-1000 Torr, 0.50% Reading for<1 Torr

Communication Protocol: DeviceNet™

Analog Output; 0-10 VDC into >10KΩ load

Analog Connector: 9-pin female D-subminiature

Digital Connector: 5-pin sealed micro-style male bayonet with anti-rotation device

Span Temperature Coefficient: Unheated Models: 0.04% Reading/°C

Heated Models: 0.02% Reading/°C

Volume: 6.3 cc

Overpressure Limit: 45 psia (310 kPa)

Exposed Materials: Inconel and Incoloy nickel alloys

Power Requirements: Unheated Models: 11-25 VDC @≤5 watts

45°C Models: 18-25 VDC @≤15 watts

80°C & 100°C Models: 18-25 VDC @≤25 watts

Level of Filtering: Adjustable via user software

Data Rate Switch: 4 positions: 125, 250, 500, PGM

Network Size: 64 nodes maximum

Compliance: CE

For specific range please check the attachment below!
