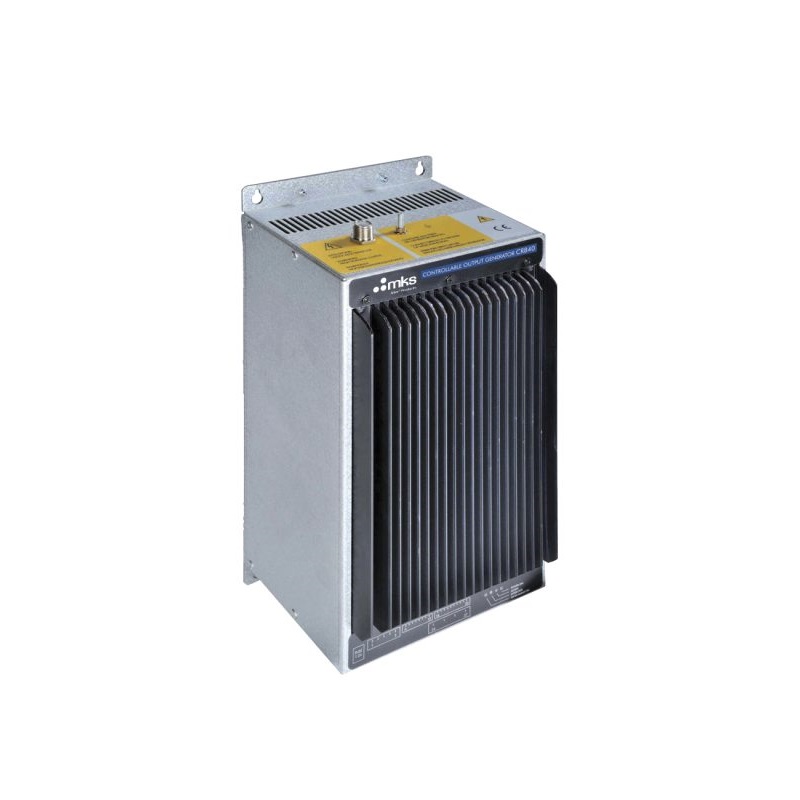

MKS CR 840 Resonant Microwave Power Supply (2kW; 2.45GHz Magnetron)

Power Output: 3000 W

Input Voltage: 3 x 400V + N

Line Frequency: 50/60 Hz

Efficiency: 92%

Output Current: 750 mA max

Dimensions: 190 x 168.5 x 387 mm (7.48 x 6.63 x 15.24 inches) (WxHxD)

Weight: 10kg (22 lbs)

Cooling: Forced air, approx 80 m3/h

Ambient Operating Temperature: 40° C (104° F) maximum

Compliance: CE mark, Directive EMC and LV, through norms EN61010-1, EN61000-6-4, EN61000-6-2

Preferred Microwave Magnetron Head:

- TMA20 (Closed head, air-cooled, waveguide size WR340)

- TM020 (Closed head, water-cooled, waveguide size WR 340)

- TI020 (Integral head, waveguide size WR340, includes isolator)

Compatible with: 2kW, 2.45 GHz Magnetron
