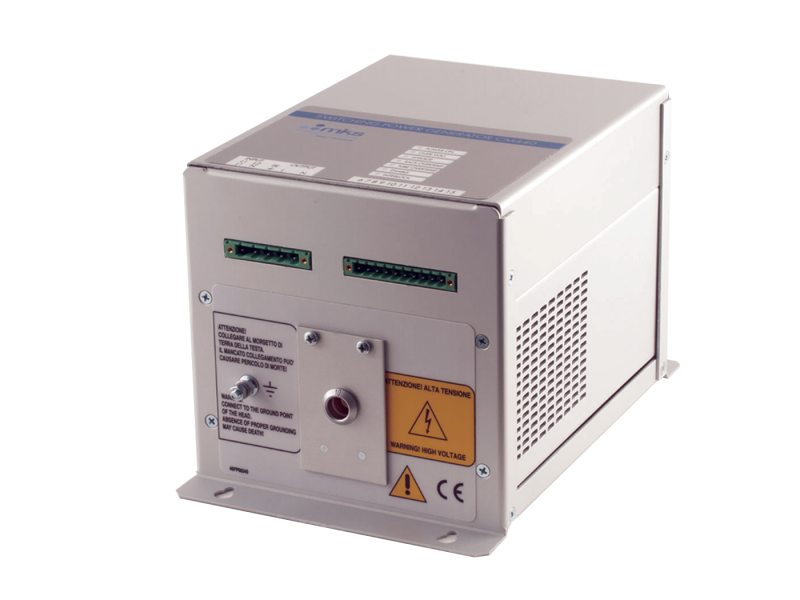

MKS CM 340 Compact, Air-cooled Microwave Power Supply (1kW; 2.45GHz Magnetron)

Power Output: 1450W

Power Requirements: 190 - 265 VAC

Line Frequency: 50/60 Hz

Efficiency: 90%

Output Current: 350 mA

Dimensions: 180 x 178 x 280 mm (7.1 x 7.1 x 11 inches) (WxHxD)

Weight: 5.6 kg (12.4 lbs.)

Cooling: Forced air, 80 m3/h

Ambient Operating Temperature: 40° C (104° F) maximum

Compliance: CE mark, Directive EMC and LV, through norms, EN61010-1, EN61000-6-4, EN61000-6-2

Preferred Microwave Magnetron Head: TMx09 (Closed head, waveguide size WR340)

Compatible with: 1.0 kW, 2.45 GHz Magnetron
